Feasible for large size modularization
We are feasible for the maximum 100tons of large plate work products.
For our customersʼ needs, we offer an integrated system of production from trial fitting, heat-retention to marine transporting. ♢Main Products
Large plate work products
For our customersʼ needs, we offer an integrated system of production from trial fitting, heat-retention to marine transporting. ♢Main Products
Large plate work products
□Ground Plans
□Equipment Overview
| NO. | Machine Name | AMT | Capabilities |
|---|---|---|---|
| 1 | (indoor)Ceiling Crane | 6 | 10~30t |
| 2 | (Outdoor yard)Gantry Crane | 1 | 60t , 30t |
| 3 | (Outdoor)Gantry Crane | 4 | 5~30t |
| 4 | Bandsaw | 2 | H400, H250 |
| 5 | Sand blaster | 1 | |
| 6 | Iron Multi Worker | 1 | Copper type Punches holes up to 9t |
| 7 | Bending Roller | 1 | 36t×3,200mm |
| 8 | NC Plasma Cutter | 1 | 2.5t, 4.5mx17m Groove processing possible |
○Common Facilities/100t crane gantry(For shipping),
Lifting height 20m,1unit
○Total area of site:15,840 square meters
○Total area of factory:3,520 square meters
○Total area of yard:12,320 square meters

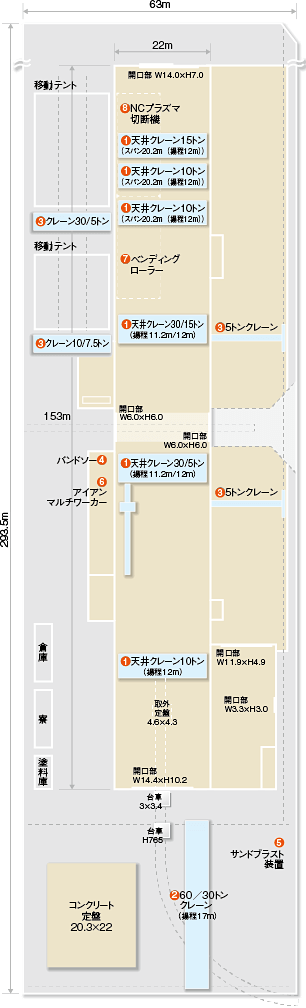

□Nomi Factory Surrounding map
